Features
Product color: Stainless steel
Placement Type: Wall Mounted
Built-in display: ?
Control type: Buttons
Monitor type: LED
Exhaust connection diameter: 15 cm
Return valve: ?
Number of engines: 1
Motor included: ?
Engine type: EcoPower

Performance
Maximum extraction power: 586 m³/h
Extraction type: Conducted
Fluid Dynamic Efficiency Class: A
Luminous efficiency class: A
Grease filtration efficiency class: C
Number of speeds: 3
Noise level: 68 dB
Increased air extraction power: 735 m³/h
Intensive speed: ?
Noise level (low speed): 54 dB
Noise level (high speed): 68 dB

Filtering
Grease filter type: Stainless steel
Number of filters: 2 unit(s)
Filter cleaning indicator: ?
Dishwasher washable filter: ?
Removable filter: ?
Washable filter: ?

Lighting
Lamp power: 6 W
Lamp type: LED
Lighting position: Bottom

Energy management
Energy efficiency class: A
Annual energy consumption: 56 kWh
Energy efficiency scale: A+++ to D
Connected load: 286 W
Motor power: 280W
AC input voltage: 220 - 240 V
AC input frequency: 50 Hz

Product dimensions and weight
Width: 900mm
Depth: 480mm
Height (min): 67 cm
Height (max): 100 cm
Weight: 13.4 kg

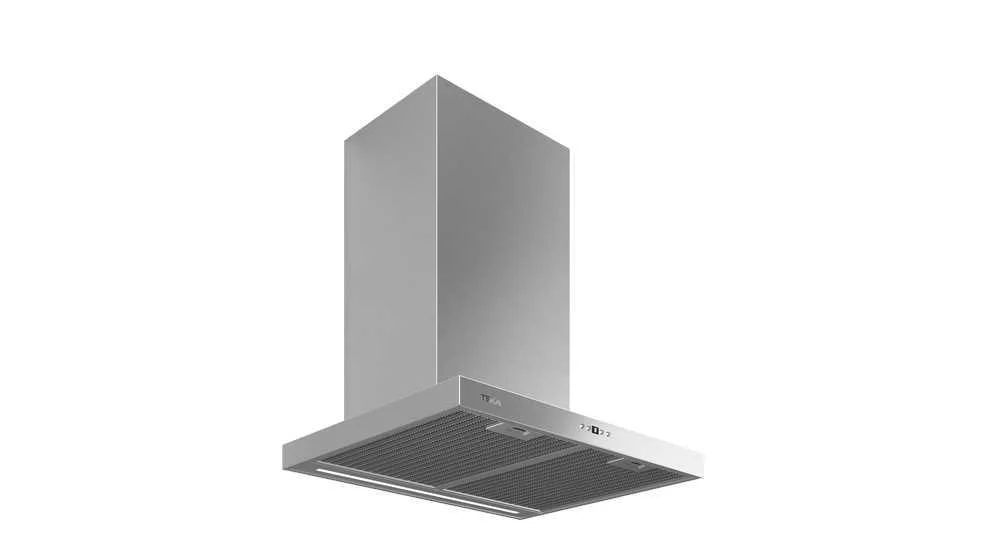

Exaustor de Chaminé Dsh 686 586m³/H Inox - Teka
