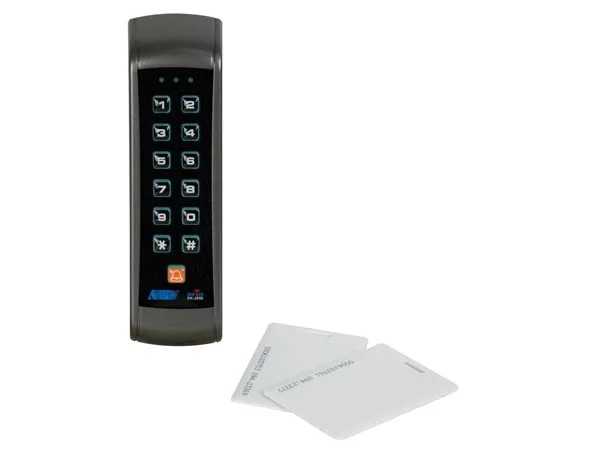

DURABLE EPOXY COATED BACK-LIT KEY BOARD WITH DOORBELL BUTTON
- VERTICAL MOUNT WEATHERPROOF PLASTIC HOUSING
- OPERATED WITH PIN CODES & EM CARDS
- SELF-CONTAINED, STAND-ALONE OPERATION
- BUILT-IN DATA I/O PORT EXPANDABLE FOR SPLIT-DECODED OPERATION
- RELAY OUTPUT CONTACTS FOR DOOR STRIKE AND DOORBELL
- DUAL ILLUMINATION LEVEL, USER FRIENDLY FOR LOW-LIT ENVIRONMENT
- PROGRAMMABLE USER CODES, VISITOR CODES AND MASTER CODE
- STAND-ALONE ELECTRICAL ACCESS CONTROL
- COMPATIBLE WITH FAIL-SECURE OR FAIL-SAFE ELECTRICAL LOCK
- PROGRAMMABLE INTELLIGENT EGRESS BUTTON: CONTROLS POSSIBLE WITH DELAY, WARNING AND BUTTON CONTACT WAYS OF MOMENTARY OR HOLDING CONTACT
- COMMON USER PIN, GROUP USER PINS & PRIVATE USER PINS FOR WORKING WITH THE EM CARD AT VARIOUS LEVELS OF SECURITY
- EXTREMELY LONG PROGRAMMABLE TIMER FOR OUTPUT RELAY: 1 SECOND UP TO OVER 24 HOURS
- OPCIONAL: HAA2866/TAG - HAA2866/TAG2
- USER MANUAL: ENGLISH
HOUSING: ABS
- TENSÃO DE FUNCIONAMENTO: 11-15 VDC
- CURRENT: 60-90 MA
- OUTPUT RELAY 1: NC + NO DRY CONTACTS 2 A / 24 VDC MAX.
- OUTPUT RELAY 2: NO DRY CONTACT 2 A / 24 VDC MAX.
- TAMPER SWITCH: NC DRY CONTACT 50 MA / 12 VDC
- TEMPERATURA DE FUNCIONAMENTO: DE -20 °C A +70 °C
- HUMIDITY: 5-95 % RH, NON CONDENSING
- GRAU DE PROTEÇÃO IP: IP55
- PESO: 160 G / 5.64 OZ
- DIMENSIONS (H X W X D): 168.5 X 46.5 X 24 MM / 6.63" X 1.83" X 0.94" - Velleman

Leitor de Controlo de Acessos com Pin + Cartões
