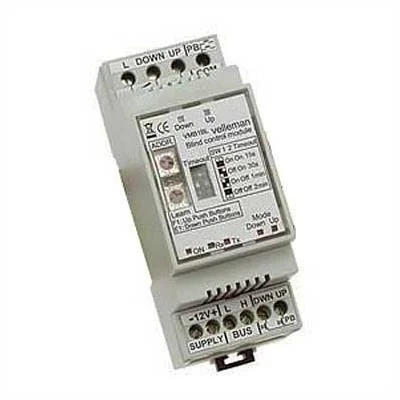

CAN BE USED TO CONTROL AN ELECTRIC ROLL-DOWN SHUTTER, SUNBLIND...
- MANUAL CONTROL ON THE MODULE
- CONTROLLABLE BY CONNECTING SEVERAL PUSH BUTTONS IN PARALLEL, OR THROUGH VELBUS
- PROGRAMMABLE WITH OR WITHOUT PC
- FEEDBACK TOWARDS THE CONTROL MODULES
- ROTARY SWITCHES FOR SETTING ADDRESS
- 5 MODES: UP, DOWN, COMPLETELY UP, COMPLETELY DOWN, UP/DOWN
- LED INDICATIONS FOR:
-
- UP AND DOWN RELAY OUTPUT
-
- UP AND DOWN CONTROL MODES
-
- POWER VOLTAGE
-
- DATA RECEPTION AND FORWARDING THROUGH VELBUS
TIME-OUT: 15S - 30S - 1MIN - 2 MIN (DIP SWITCH SETTINGS)
- RELAY CONTACTS: 16A/230VAC MAX.
- 250 POSSIBLE ADDRESSES
- PUSH BUTTON INPUT DEBOUNCE: 65MS
- POWER SUPPLY: 15±3VDC
- POWER CONSUMPTION: 100MA
- DIMENSIONS: 90 X 36 X 58MM / 3.5 X 1.4 X 2.3"
- WEIGHT: 110G (0.24LBS)
- WIDTH: 2 DIN MODULES
- MODES: 5 - Velleman

Modulo para Controlar Persianas Eletricas
