APPLICATIONS:
-
- FOR ALL TYPES OF ELECTRONIC EQUIPMENT SUCH AS TELEPHONES, AUDIO INSTRUMENTS, TV SETS, VCR'S, ...
-
- MICRO-MINIATURE, LIGHTWEIGHT
- SNAP-IN TYPE: SUITABLE FOR DIRECT PCB MOUNTING

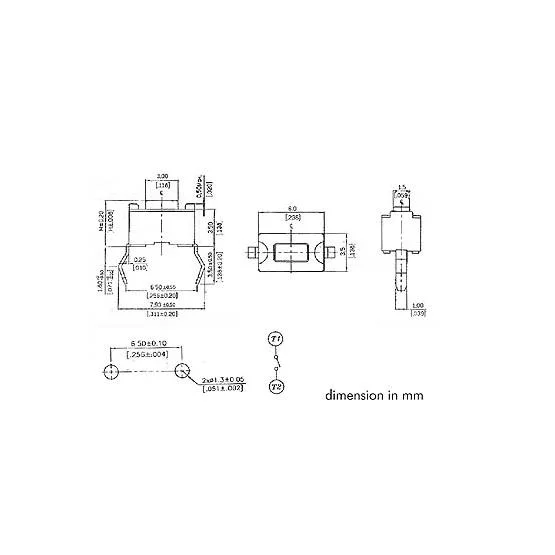

DIMENSIONS: 6 X 3.5MM
- HEIGHT: 4.2MM
- RATING: 12VDC - 50MA
- INSULATION RESISTANCE: > 100MOHM - 250VDC
- WITHSTAND VOLTAGE: 100VAC 1 MINUTE
- CONTACT RESISTANCE: < 100MOHM
- SOLDERING TEMPERATURE: 255°C FOR MAX. 5 SECONDS
- MECHANICAL LIFE: 500000 CYCLES
- ELECTRICAL LIFE: 300000 CYCLES
- AMBIENT TEMPERATURE RANGE: -25°C TO +70°C
- AMBIENT HUMIDITY RANGE: < 85% RH
- OPERATING FORCE: 130 TO 160 ± 30GF - Velleman
