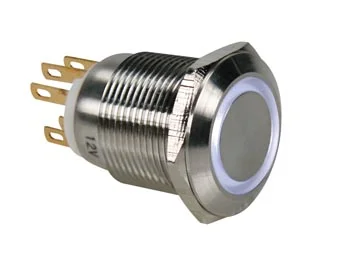

SPDT - 1NO 1NC • colour: white • connections: •• NC (normal closed): 1-2 •• NO (normal open): 3-4 • power supply LED ring: 12 VDC • type: (on)-off • operating temperature: -20 °C ~ +70 °C • operating humidity: 45 ~ 85% RH • insulation resistance: > 1000 Mohm • contact resistance: < 50 Mohm • contact material: silver alloy • mechanical life: 1 000 000 cycles • electrical life: 50 000 cycles • dielectric strength: •• between terminals of the same pole: - •• between terminals of different poles: 2000 VAC • body material: stainless steel • pressure: 5.5 N • IP rating: IP65 • max. voltage: •• - •• 230 VAC / 5 A (0.5 A for R1800 series) • mounting hole: Ø 19 mm
