SWITCHING POSITION:
-
- 2-3: ON
-
- OPEN: OFF
-
- 2-1: ON
- CONTACT RATING: 5A WITH RESISTIVE LOAD OF 120VAC OR 28VDC
- ELECTRICAL LIFE: 50000 MAKE-AND-BREAK CYCLES AT FULL LOAD
- CONTACT RESISTANCE: INITIALLY MAX. 10MOHM AT 2-4VDC / 100MA FOR BOTH COIN SILVER AND GOLD-PLATED CONTACTS
- INSULATION RESISTANCE: MIN. 1000MOHM
- DIELECTRIC STRENGTH: 1000VRMS AT SEA LEVEL
- OPERATING TEMPERATURE: -30°C TO +85°C
- MATERIALS:
-
- CASE: DIALLYL PHTHALATE (DAP)
-
- ROCKERS: NYLON
-
- BUSHING: BRASS, NICKEL-PLATED
-
- HOUSING: STAINLESS STEEL
-
- TERMINAL/SWITCH SUPPORT: BRASS, ELECTROTIN-PLATED
-
- CONTACT: COIN SILVER, SILVER-PLATED
-
- CENTRE CONTACT AND TERMINAL: BRASS, SILVER-PLATED - Velleman

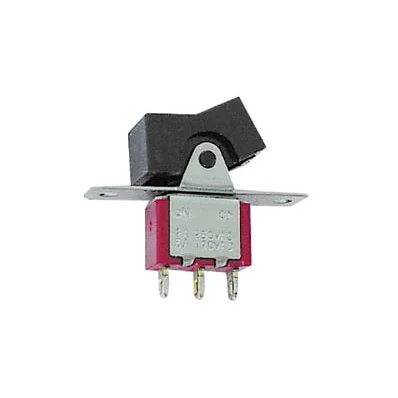

Interruptor On/Off Sdpt 90º
