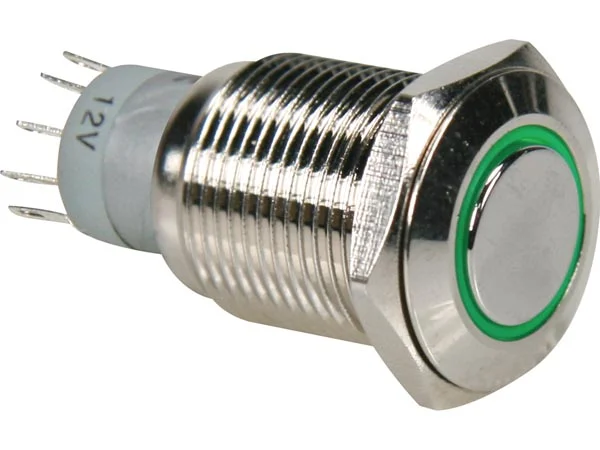

illumination by means of 12V LED lighting • lifetime: > 40 000hSPDT 1NO 1NC • colour: green • type: on-off • operating temperature: -20 °C ~ +70 °C • operating humidity: 45 ~ 85 % RH • insulation resistance: > 1000 Mohm • contact resistance: < 50 Mohm • contact material: silver alloy • mechanical life: 1 000 000 cycles • electrical life: 50 000 cycles • dielectric strength: •• between terminals of the same pole: 1000 VAC •• between terminal of different poles: 2000 VAC •• between terminal and lamp terminal: 1500 VAC • body material: nickel-plated brass • IP rating: IP40/IP65 • max. voltage: •• 24 VDC / 1 A •• 230 VAC / 0.5 A • mounting hole: Ø 16 mm
