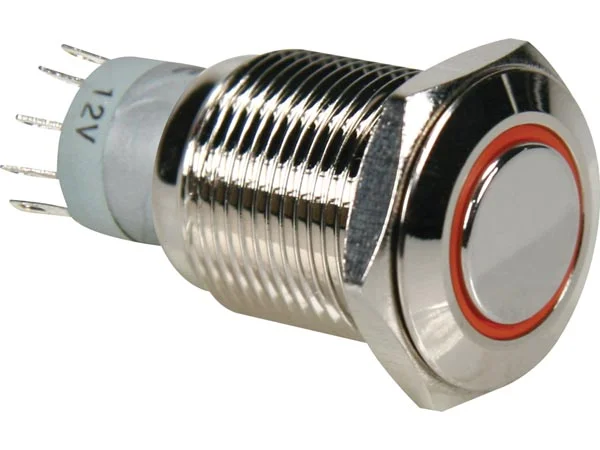

Round Metal Switch Spdt 1no 1nc - Orange Ring
9,60 €
Store: 10,30 €
9,60 €
Availability
The period indicated corresponds to an estimated period of 3 working days to mainland Portugal. Islands (Azores and Madeira) plus an estimated period of 10 more working days to the indicated period. Estimated period valid only for the existing quantity in stock. The estimated period may change depending on availability or times subject to delays (Example: Black Friday, Christmas, Contingency States, among others).
Store Porto - Júlio de MatosAvailableLearn more
Levantamento previsto a 11 of June.
Period valid for online purchases
Period valid for online purchases
- LIFETIME: > 40 000H
SPDT 1NO 1NC
- COLOUR: ORANGE
- TYPE: ON-OFF
- OPERATING TEMPERATURE: -20°C ~ +70°C
- OPERATING HUMIDITY: 45 ~ 85% RH
- INSULATION RESISTANCE: > 1000M OHMS
- CONTACT RESISTANCE: < 50M OHMS
- CONTACT MATERIAL: SILVER ALLOY
- MECHANICAL LIFE: 1 000 000 CYCLES
- ELECTRICAL LIFE: 50 000 CYCLES
- DIELECTRIC STRENGTH:
-
- BETWEEN TERMINALS OF THE SAME POLE: 1000VAC
-
- BETWEEN TERMINAL OF DIFFERENT POLES: 2000VAC
-
- BETWEEN TERMINAL AND LAMP TERMINAL: 1500VAC
- BODY MATERIAL: NICKEL-PLATED BRASS
- IP RATING: IP40/IP65
- MAX. VOLTAGE:
-
- 24VDC / 1A
-
- 230VAC / 0.5A

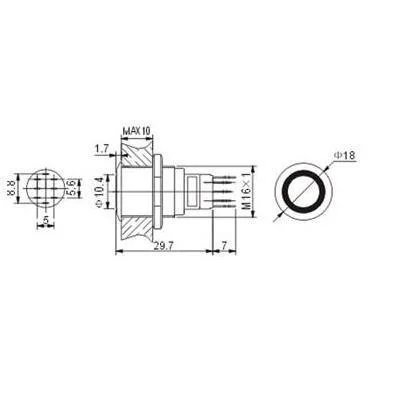

- MOUNTING HOLE: Ø16MM - Velleman
