low resistance • high hold current • solid state • radial leadshold current Ih (A): 1.85 • trip current It (A): 3.70 • max. time to trip (at 5 x Ih): 8.7 • max. current Imax (A): 40 • rated voltage Vmax (Vdc): 30 • typ. power Pd (W): 1.0 • resistance tolerance: •• Rmin (ohm): 0.030 •• Rmax. (1 hour after tripping) (ohm): 0.09 • dimensions: •• A (max): 10.2 •• B (max): 15.7 •• C (typ): 5.1 •• D (min): 7.6 •• E (max): 3.0 •• F (typ): 0.9 • operating current: 900mA ~ 9.0A • maximum current: 40A • maximum voltage: 30V • temperature range: -40°C to +85°C • materials: •• leads: tin-plated copper •• insulating: flame-retardant epoxy, meets requirement UL-94V-O

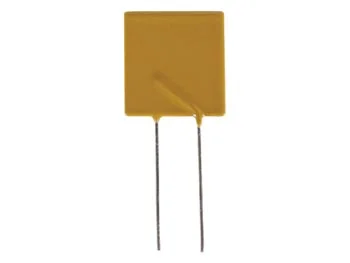

Fusivel Rearmavel (Poly Switch) 1.85-3.7a / 30vdc
