OUTPUT CURRENT SELECTABLE BY DIP SWITCHES
- 180-295 VAC INPUT ONLY
- BUILT-IN ACTIVE PFC FUNCTION
- PROTECTION AGAINST: SHORT CIRCUIT / OVERVOLTAGE / OVER-TEMPERATURE
- COOLING: FREE AIR CONVECTION
- FULLY ISOLATED PLASTIC CASE
- CLASS II POWER UNIT, NO FG (FRAME GROUND)
- BUILT-IN 0-10 VDC AND PWM SIGNAL DIMMING FUNCTION
- BUILT-IN 12 V / 50 MA AUXILIARY OUTPUT
- IP20
- LOGARITHMIC OR LINEAR DIMMING CURVE SELECTABLE (MEETS IEC62386-207)
- TEMPERATURE COMPENSATION BY EXTERNAL NTC THERMISTOR (NOT INCL.)
- NO-LOAD POWER CONSUMPTION: = 0.975 / 230 VAC, >= 0.96 / 277 VAC AT RATED POWER
-
- TOTAL HARMONIC DISTORTION: LOWER THAN 20 % WHEN OUTPUT LOAD IS 75 % OR HIGHER
-
- EFFICIENCY (TYP.): 91 %
-
- AC CURRENT (TYP.): 0.23 A / 230 VAC, 0.2 A / 277 VAC
-
- INRUSH CURRENT (TYP.): COLD START 20 A (TWIDTH = 260 ?S MEASURED AT 50 % IPEAK) AT 230 VAC
-
- LEAKAGE CURRENT: 100 MOHM / 500 VDC / 25 °C / 70 % RH
-
- EMC EMISSION: COMPLIANCE TO EN55015, EN61000-3-2 CLASS C (>= 40 % RATED POWER), EN61000-3-3
-
- EMC IMMUNITY: COMPLIANCE TO EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 LIGHT INDUSTRY LEVEL (SURGE 2 KV), CRITERIA A
- OUTROS:
-
- MTBF: MIN. 260,600 H, MIL-HDBK-217F (25 °C)
-
- DIMENSIONS (L X W X H): 123.5 X 81.5 X 23 MM
-
- EMBALAGEM: 0.24 KG, 54 PCS / 15 KG / 1.12 FT³ - Velleman

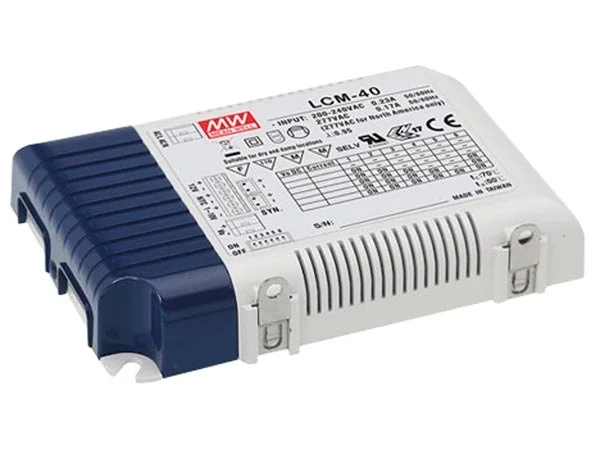

Fonte de Alimentação de LED Corrente Constante 40w
