type: OFF - (ON) - SPST • 48 VDC / 2 A • mounting hole: Ø 16 mm • operating temperature: -25 °C ~ +55 °C • operating humidity: 45 ~ 85 % RH • insulation resistance: > 100 Mohm • contact resistance: < 50 Mohm • contact material: silver alloy • mechanical life: 1 000 000 cycles • electrical life: 50 000 cycles • dielectric strength: •• between terminals of the same pole: 1000 VAC •• between terminals of different poles: 2000 VAC • body material: nickel-plated brass • pressure: 5.5 N • IP rating: IP40/IP65 • max. voltage: •• 24 VDC / 1 A •• 230 VAC / 0.5 A

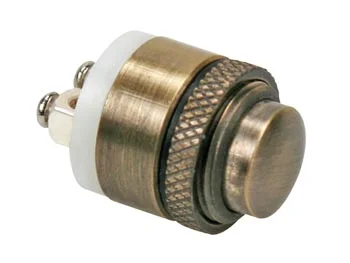

Interruptor de Pressao 230v 0.5a
