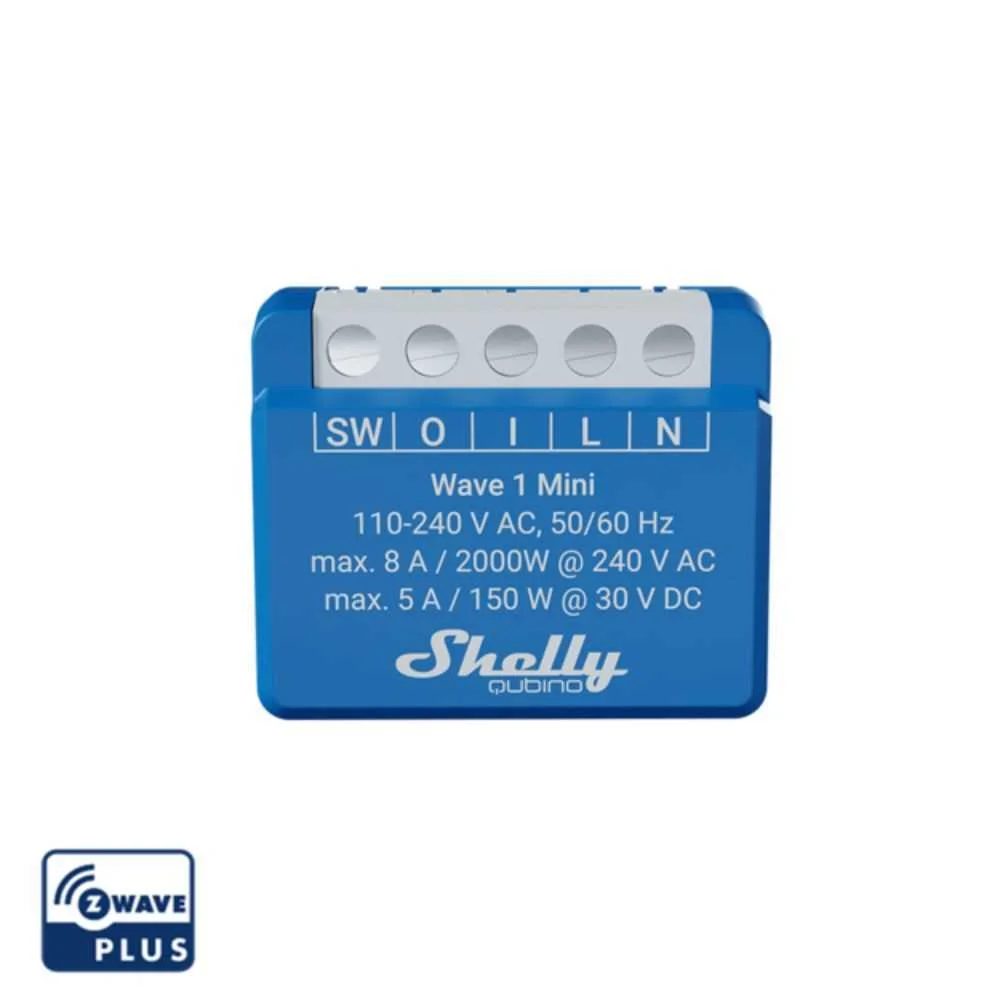

The Shelly Qubino Wave 1 Mini Smart Relay Module is part of the Shelly Wave product family, utilizing the Z-Wave protocol for communication (868.42 MHz in Europe). As a smart home protocol, Z-Wave is specifically designed for communication between smart devices. The sub-gigahertz frequency ensures adequate signal propagation, and the Z-Wave MESH network topology allows devices further from the central unit to communicate effectively (continuously powered devices act as signal repeaters). Z-Wave devices require a Z-Wave Hub or USB coordinator (which can be connected to a mini PC) to function. The Z-Wave protocol uses standardized command classes, making it compatible with thousands of products from various brands, with up to 232 devices in a single network. Z-Wave also supports association groups, allowing direct linkages between devices within the network. Numerous parameters can be customized at the protocol level, meeting sophisticated user needs.

The Shelly Wave 1 Mini Smart Relay Module operates on 230V AC. Despite its AC power supply, its output terminals feature dry contact switching. Besides dry contact control, the module can switch up to 240V AC at 8A or 30V DC at 5A. It includes overheat protection, ensuring safe operation even in compact wall outlets. Primarily recommended for contact control, if used for voltage control, consider maximum current limits and the reactive power and inrush current of controlled devices. It is not recommended for installation behind power outlets; instead, use the Shelly Wave 1 or Shelly Wave 1 PM models.

Pairing Instructions:

• The module has an ""S"" button, a function button.
• To pair, remove, or factory reset, use the ""S"" button after powering the device.
• Press and hold the ""S"" button until the status LED turns blue for pairing. Another long press (at least 2 seconds) initiates pairing/removal.

Tested Z-Wave Hubs:

• Home Assistant
• Home Center 3
• Jeedom
• Homey
• SmartThings
• Hubitat

Specifications:

• Power Supply: 240 VAC
• Output: Dry contact
• Maximum Current: 230 VAC 8A (resistive load), 30 VDC 5A (resistive load)
• Standby Power Consumption: 0.3 W
• Communication Protocol: Z-Wave 800
• Z-Wave Frequency: 868.4 MHz (EU)
• Range: Up to 40 meters indoors (walls and floors may reduce range)
• SmartStart: Yes
• S2 Encryption: Yes
• Z-Wave Repeater Function: Yes
• Over-the-Air Firmware Updates: Yes
• Operating Temperature: -20 to +40 °C
• Dimensions: 29 x 35 x 16 mm
• Weight: 29g

Installation:

• Fits in standard size mounting boxes, but deep mounting boxes are recommended to speed up installation.
• Can be mounted on a DIN rail with an adapter (sold separately).

Note: Like other smart relays, this module requires both phase and neutral wires for operation.
