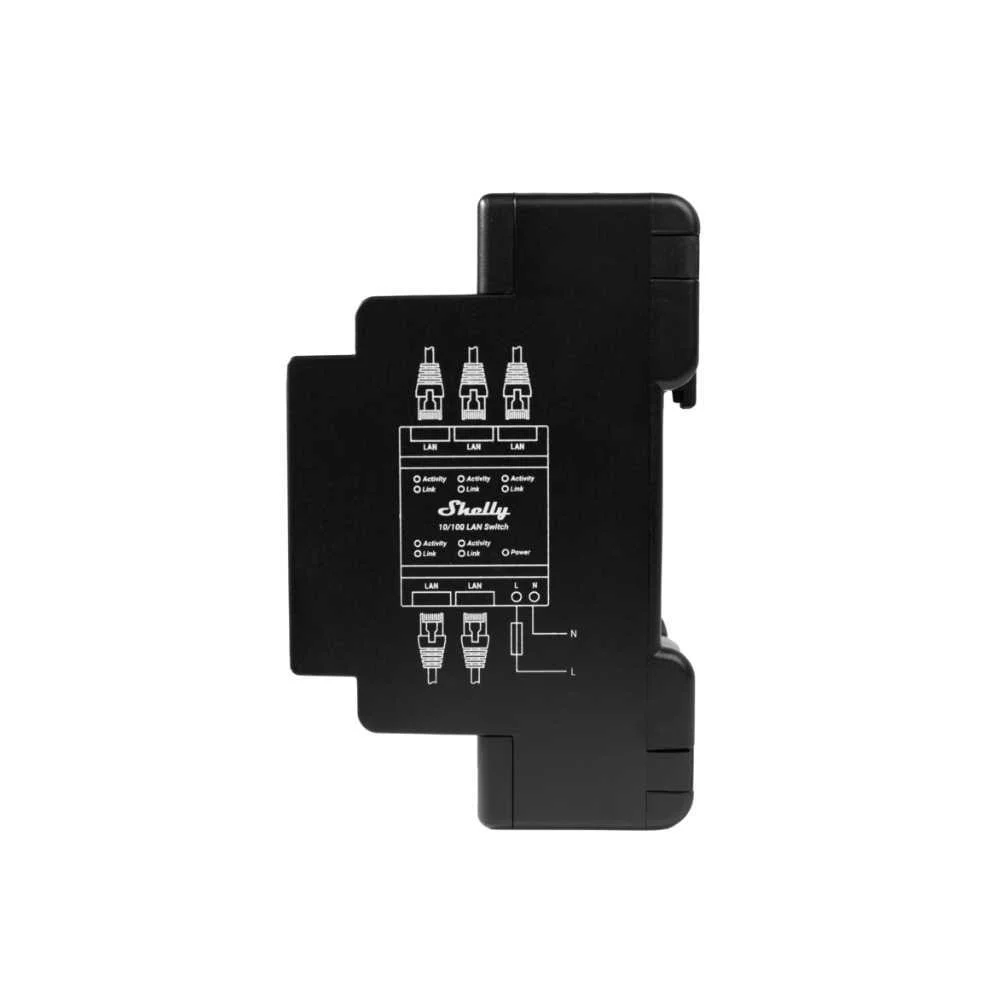

Shelly LAN Switch is a DIN-mountable Ethernet switch with 5 RJ45 ports. It offers a seamless solution to expand your network capabilities without the hassle of extensive rewiring. Engineered for reliability and performance, it ensures a consistent and stable direct network connection to your devices, providing you with peace of mind and confidence in your network infrastructure.

• DIN-mountable
• 5 RJ45 ports
• 10/100mbps
• LED indicators
• 110V - 230V power supply; No need for additional adapters

Simplify Your Setup

Designed to fit perfectly inside your existing breaker box, it simplifies network management, allowing for a cleaner and more efficient setup. Even if you hadn't initially planned your breaker box to accommodate Shelly devices, the Shelly LAN Switch eliminates the need for complex rewiring or modifications. Simply install the switch and instantly enhance the network stability of your devices, ensuring seamless operation without interference.

Specifications

• Size (HxWxD):96x53x59 mm
• Weight:87 g
• Screw terminals max torque:0.4 Nm
• Conductor cross section:0.5 to 2.5 mm² / 20 to 14 AWG
• Conductor stripped length:6 to 7 mm / 0.24 to 0.28 in
• Mounting:DIN-rail
• Shell material:Plastic
• Shell color:Black
• Ambient working temperature:-20°C to 40°C
• Humidity:30% to 70% RH
• Max. altitude:2000 m
• Power supply:110 - 240 VAC
• Power consumption:< 1 W
• External protection:Tripping characteristic B or C,max. 16 A max. rated current,min. 6 kA interrupting rating,energy limiting class 3
