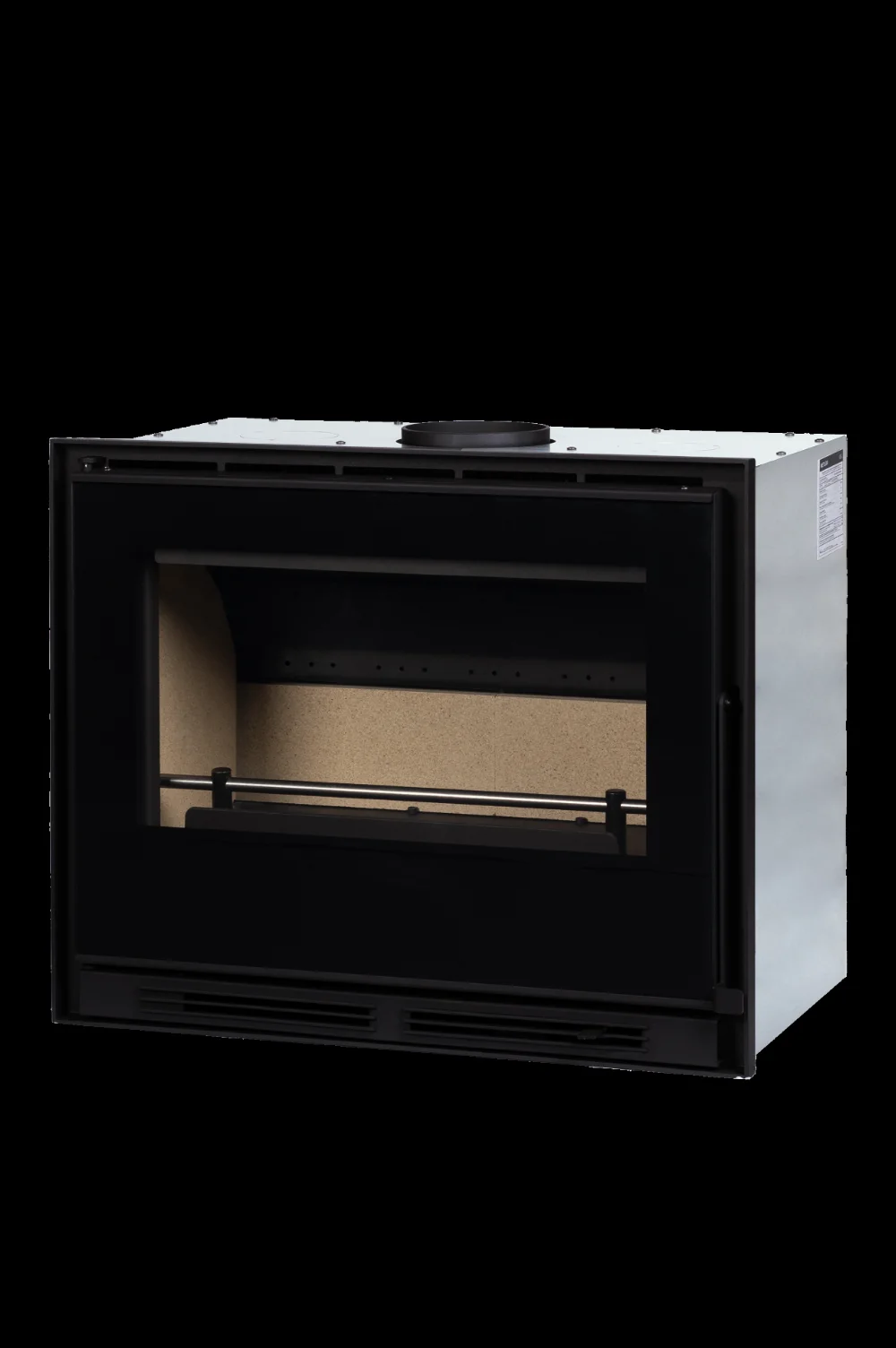

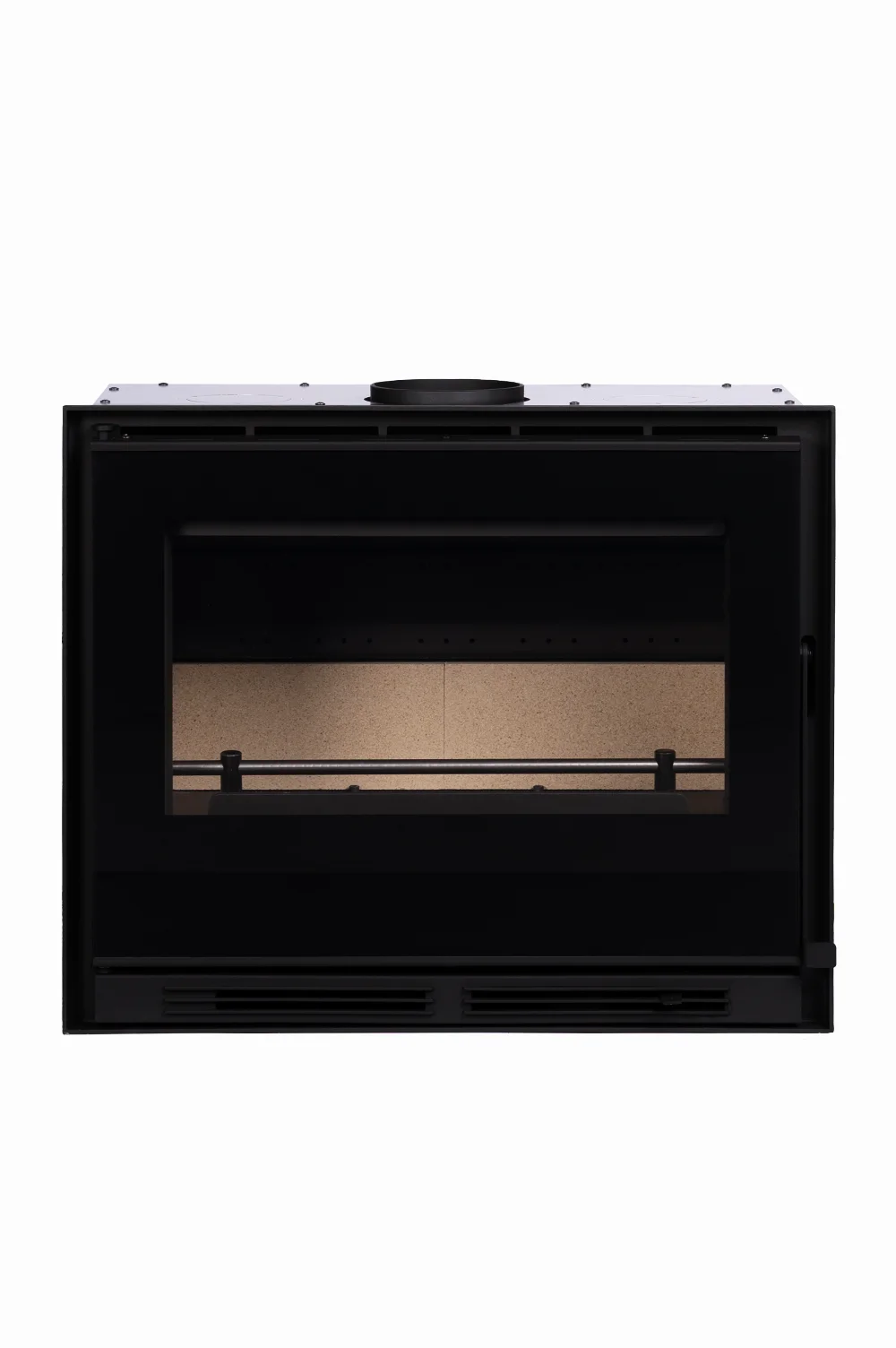

The Design 70 is a ventilated wood stove with a power of 7.8kW. Made from 4mm thick carbon steel sheet, the front of the stove is made of die-cast aluminum components, where the firewood is placed in steel. With 4mm thick Neoceramic glass and a thermal range of up to 900°C. Specialized paint is used for painting for high temperature equipment up to 650°C. All parts inherent to the device are made of steel. Equipped with 1 285x50mm fan driven by thermostat at +- 50ºC. Option of two Ø100mm hot air outlets. Interior in 20mm thick vermiculite.

Nominal Power: 7.8kW
Efficiency: 80.7%
CO(%) (13% O2) : 0.085
Gas Temperature: 245ºC
NOx | YOU | Particles: 112 | 85 | 36mg/m3
Control: Termoclik 50ºC
Ventilation: 200m3
Max length. Firewood: 450mm
Smoke Outlet: Ø 150mm
Weight: 110Kg
Dimensions (HxWxD): 570x700x425mm
