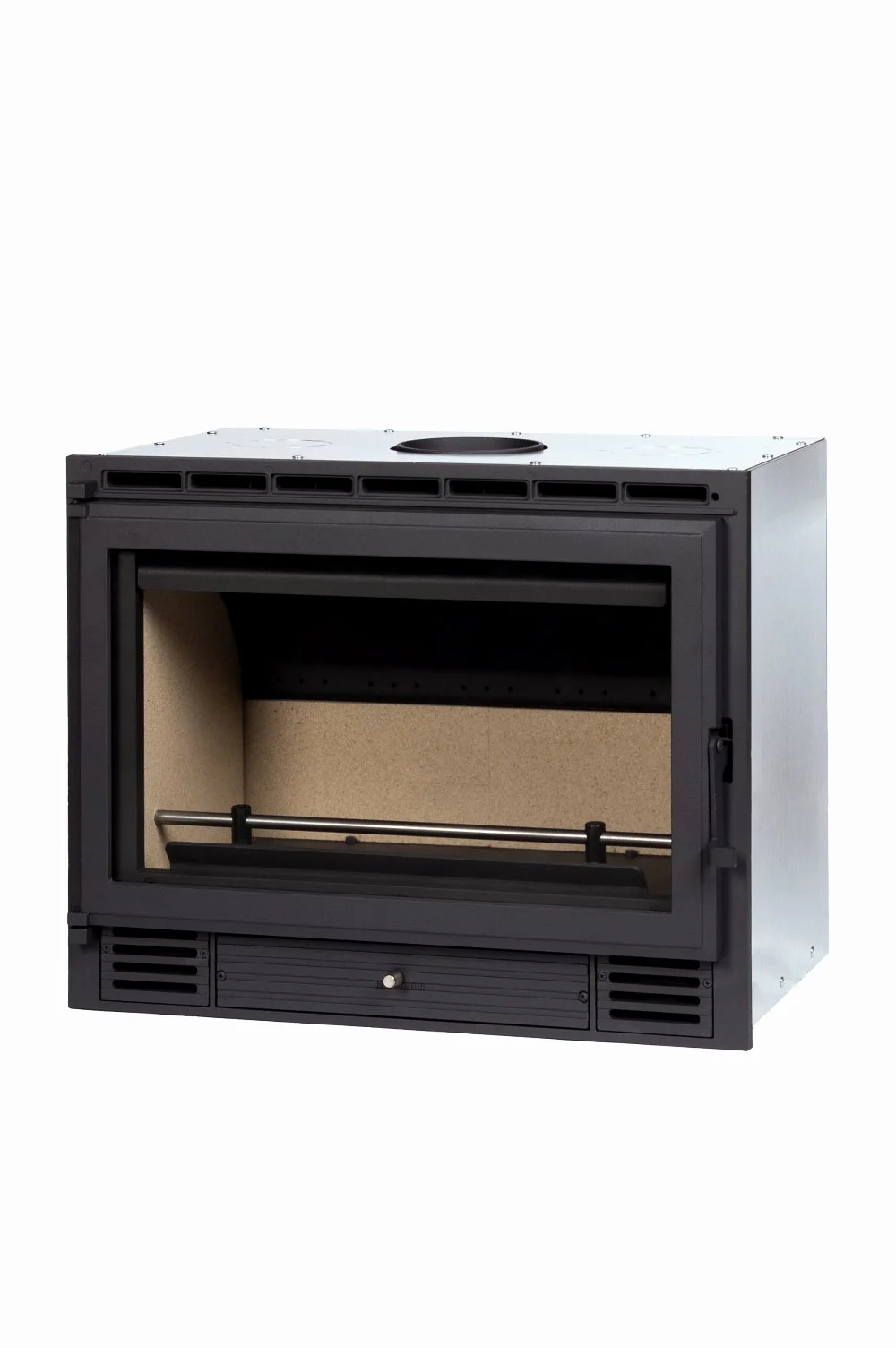

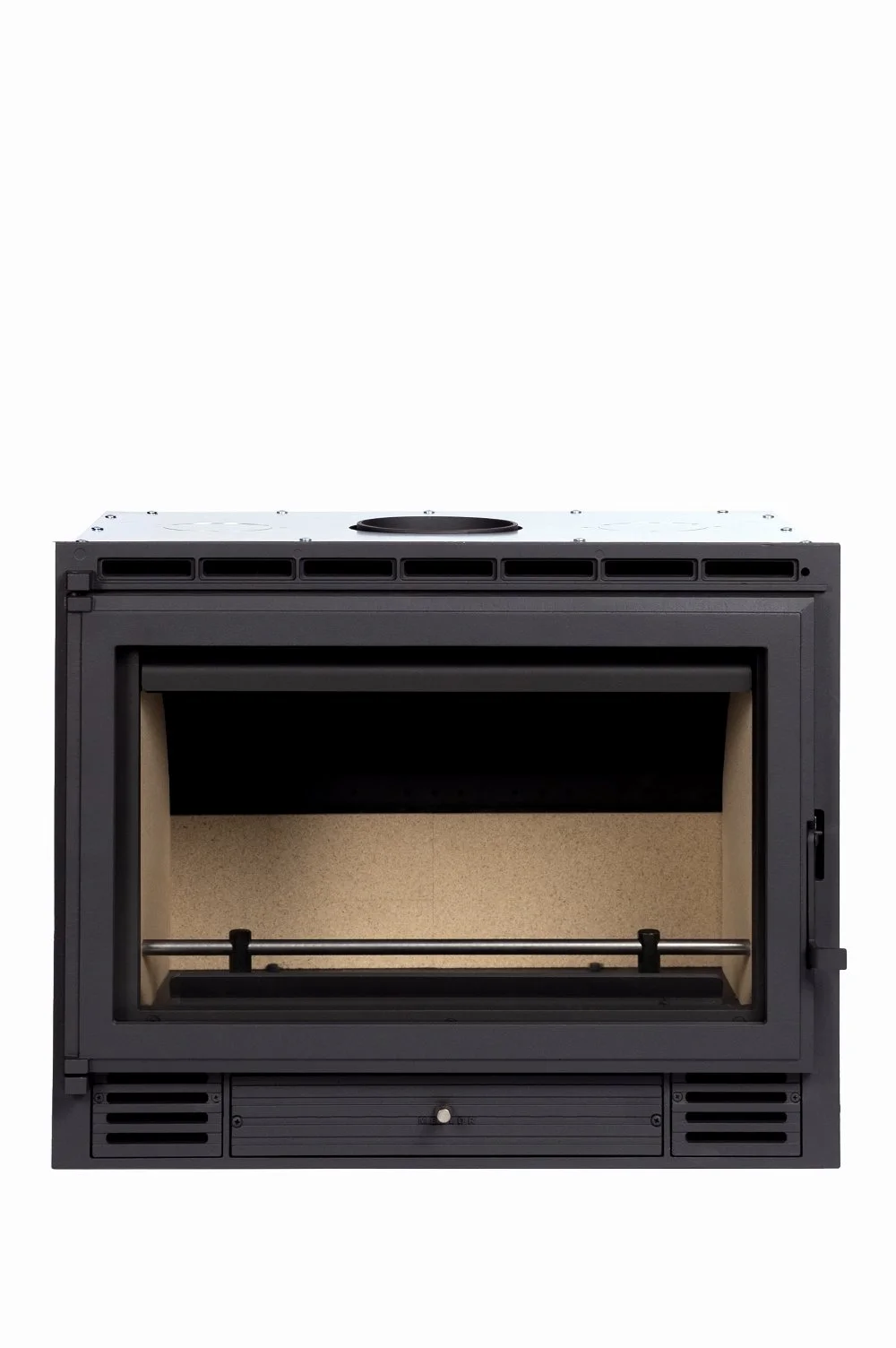

The Atlas is a ventilated wood stove with a power of 7.8kW. Made from carbon steel sheet with a thickness of 4mm, the front of the stove is consisting of die-cast aluminum components, where The firewood holder is made of steel. With 4mm Neoceramic glass thick and with a thermal range of up to 900°C. In painting specialized paint is used for equipment high temperature up to 650°C. All parts inherent to the device are made of steel. Equipped with 2 90x90mm fans activated by thermostat at +- 50ºC. Option of two outputs Ø100mm hot air. Interior in 20mm vermiculite thickness.

Nominal Power: 7.8kW
Yield: 80.7%
CO(%) (13% O2) : 0.085
Gas Temperature: 245ºC
NOx | YOU | Particles: 112 | 85 | 36mg/m3
Control: Termoclik 50ºC
Ventilation: 132m3
Max length. of Firewood: 450mm
Smoke Outlet: Ø 150mm
Weight: 100Kg
Dimensions (HxWxD): 545x685x440mm


Recuperador de Calor Ventilado Atlas - Mekka
