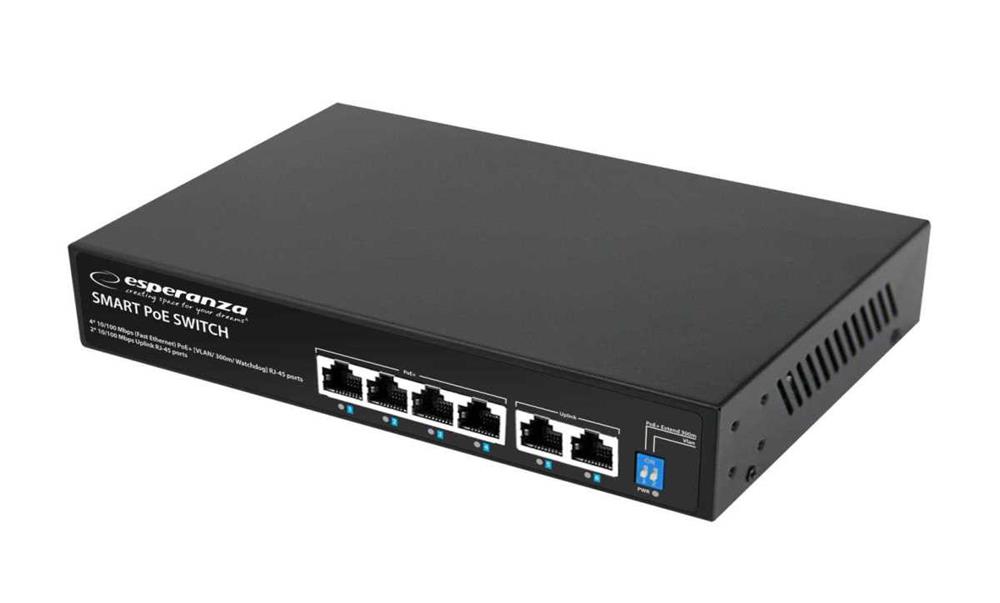

POE 4xPOE 2xUplink switch dedicated to IP monitoring. The switch allows up to 300 m of data transmission and power range for monitoring systems. No configuration required. The device is ideal for small and medium-sized monitoring systems. The automatic features of this switch make installation and operation easy and hassle-free.

Ports: 4 pcs of 10/100 Mbps RJ45 PoE ports + 2 pcs RJ45 uplink ports with automatic link speed detection

Auto MDI / MDIX patching

Standard protocol: IEEE 802.3 10BASE-T, IEEE 802.3u 100Base-TX, IEEE 802.3x, IEEE802.3i 10Base-T

Port 1-4 support standard IEEE 802.3af/at

Type of transmission: Store and Forward

Bandwidth: 1.2 Gbps

Forwarding speed: 0,89 Mpps

Buffer memory: 768 K

MAC address table: 2 K

Data flow control

Support MAC self learning and updating

POE and network LED indicator

Twisted pair transmission:

10BASE-T: Cat5 UTP (=300 m)

100BASE-TX: Cat5 or later UTP (=100 m)

Built in switch (no need to restart power supply):

Extend: AI extend 300 m transmission

VLan: Turn on, 1-4 Port support each port Isolation & VLAN

Support Watchdog function by default: 1-4 Port suport AI-PoE Network self-healing

Max/Average power per port: 30 W / 15.4 W

Total power: 60 W

Power supply PIN: 1/2(+), 3/6(-)

Power consumption

standby: <2 W

full load: 60 W

Built in power adaptor 220-240 V / 50 Hz

Cable lenght: 1 m

Operating temperature:-20?~55?

Storage temperature: -40?~75?

Operating air humidity: 5% ~ 90%, non-condensing

Storage humidity: 5% ~ 95%, non-condensing

Dimensions: 195 x 135 x 40 [mm]
