44kW Configuration: 64A @400V (Three Phase Type 2 + Three Phase Type 2)
2 MID certified Smart Meters
Identification via App or RFID card
10'' TFT Monitor
Single-phase/three-phase electrical protection: MCB (D curve) & RCD type B (30 mA)
MCB & RCD protections can be reset with automatic / remote control system
Connection to the central management system via SIM CARD or Ethernet
Built-in RFID and Bluetooth for local connectivity
Operating temperature: -30°C - 50°C
Humidity range: 5% - 95%
Atmospheric pressure: 860 hPa - 1,060 hPa
Rating: IP 54: Waterproof
Mechanical impact: IK10
Flammability Rating: UL94 V0
Exterior customization: colors, materials, stickers/film
GUI customization: Colors
Weight: 60kg
Dimensions: 1475.5mm x 335mm (diameter)
CEI EN 61851-1 Ed. two
CEI EN 62196-2 phase Type 2 - Endesa X

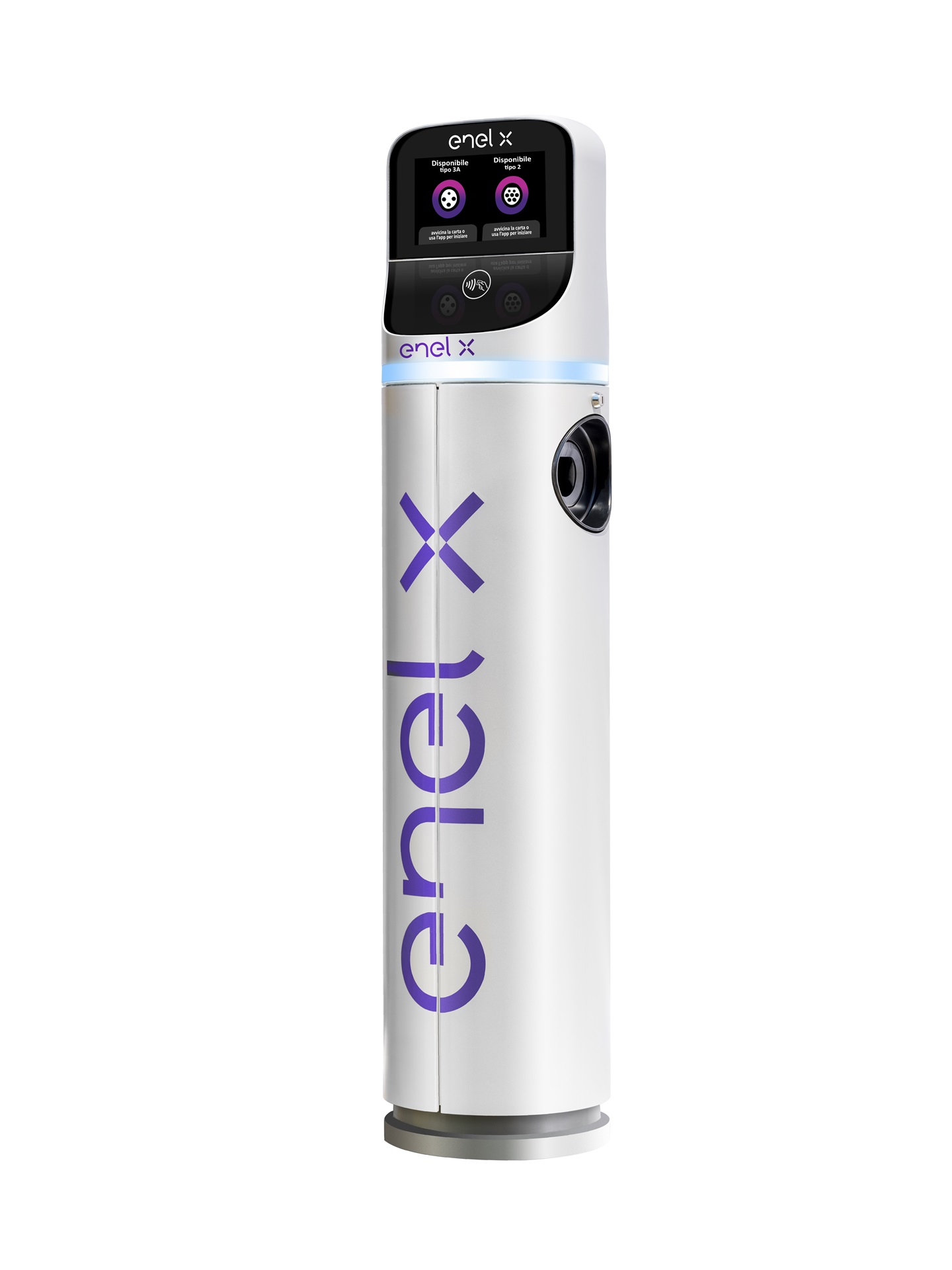

Estação de Carregamento para Carros Elétricos 22+22kw
