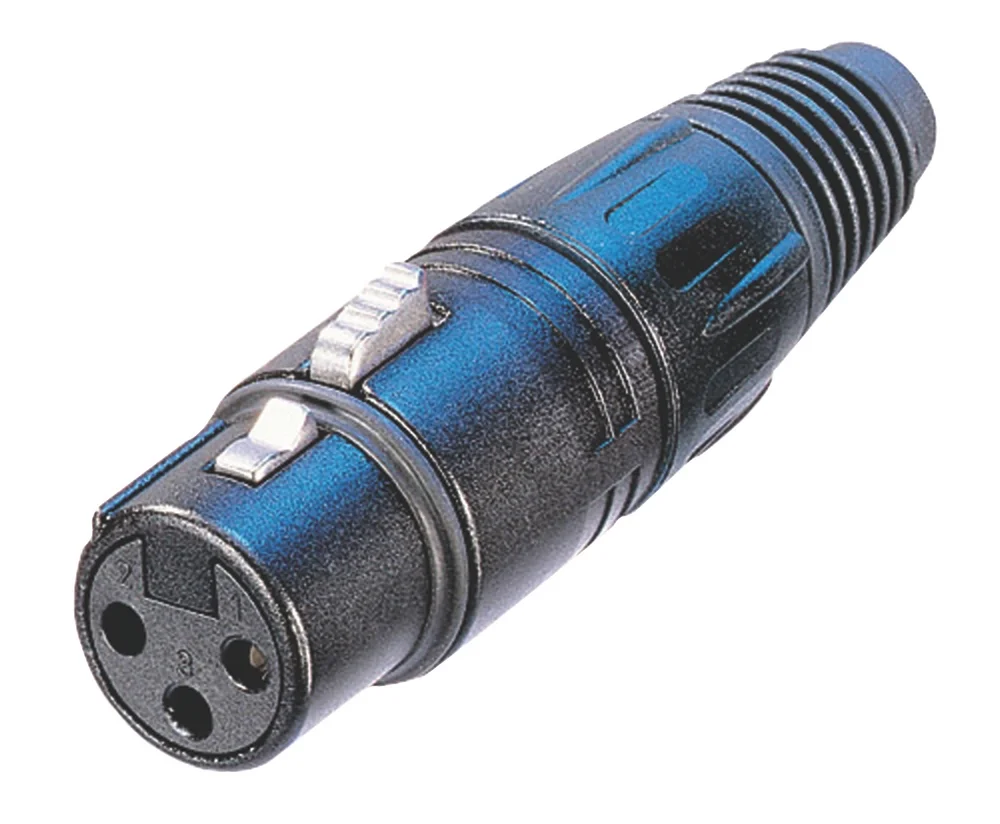

NEUTRIK NC3FXB
3 POLE CABLE CONNECTOR, FEMALE. BLACK METAL HOUSING AND GOLD CONTACTS.
TECHNICAL DATA

ELECTRICAL
NUMBER OF CONTACTS: 3
CONTACT RESISTANCE: &#8804: 3 M
INSULATION RESISTANCE
- INITIAL: > 2 G
- AFTER DAMP HEAT TEST: > 1 G
DIELECTRIC STRENGTH: 1500 V DC
RATED CURRENT: 16 A
AWG: 2.5 MM²/14 AWG
CAPACITANCE BETWEEN CONTACTS: &#8804: 4 PF

MECHANICAL
LIFETIME: >1000 CYCLES
INSERTION / WITHDRAWAL FORCE: &#8804: 20 N
CABLE O.D. RANGE: 3.5 MM - 8.0 MM


MATERIALS
SHELL: ZNAL4CU1, BLACK CR OVER CU PLATING
INSERT: PA 6.6 30% GR (GLASS REINFORCED)
CONTACTS: CUSN8
CONTACT SURFACE: GAL 0.2 UM AU HARD ALLOY OVER 2 UM NI
LATCH LOCK (FEMALE): ST3K32
STRAIN-RELIEF CLAMP: POM
ANTIKINK BUSHING: PUR

ENVIRONMENTAL
TEMPERATURE RANGE: -30° C TO + 80° C
FLAMMABILITY: UL 94HB
SOLDERABILITY: COMPLIES WITH IEC 68-2-20

COMPATIBILITY / REMARKS
COMPATIBILITY: IEC TENTATIVE STANDARD & SWITCHCRAFT® QG & CANNON XLR
DISASSEMBLED VERSION (3 POLE ONLY) IN DISPENSER BOX OF 100 PCS.: ADD SUFFIX ´-D´
